TeleEye DM860 -
Download |
|
Designed for diverse surveillance needs,
TeleEye DM860 Speed Dome Camera
incorporates more superb
features to provide accurate response to a variety of requests. Featuring
the super high resolution in 520 TV lines, 352X zoom, 4 privacy zone
masking, low light performance, pattern tour...,
TeleEye
DM860
can be used for unlimited application possibilities.
- 4 privacy zone masking
- Maximum 352X zoom
- Super high resolution 520 TV Lines
- Day/Night model available
- 80 programmable presets & 4 pattern tours
- Fully compatible with TeleEye III+ video transmitters for remote
surveillance
- Remote surveillance and camera control through Internet or phone line
- Mounting options: ceiling, wall, pendant, pole and corner
|
|

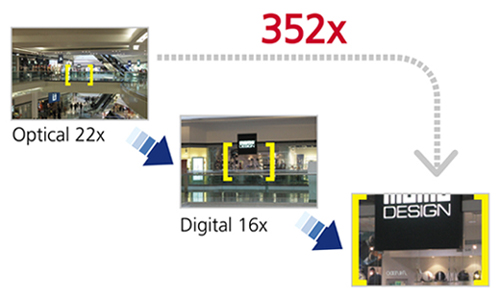

Powerful 352X Zoom |
|
TeleEye
DM860
is equipped with a reliable
built-in 22X optical zoom lens that allows you to monitor a scene from any
distance. Combined with a 16X digital zoom, its total zoom ratio can be
boosted up to 352X for enabling powerful close-ups and capturing the subject
details. |
 |
|
Advanced Privacy Zone Masking |
|
TeleEye
DM860
allows up to 4 masks of
arbitrary size, to mask out any desired areas on screen. It can ensure
consistent privacy no matter where the camera is pointing or zooming. |
|
 |
|

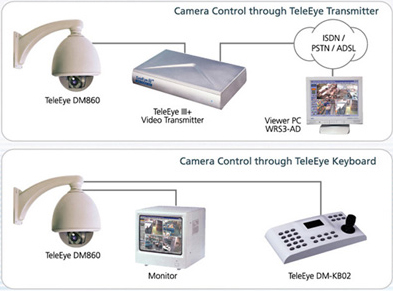

Typical
Configurations |
|
 |
|
Day/Night
Changeover Operation |
|
 |
|

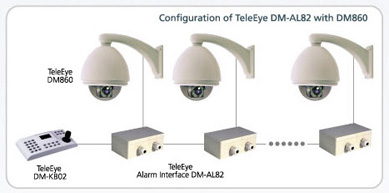

TeleEye
DM-AL82 Alarm Interface |
|
 |
|
TeleEye
DM860 Product Series |
DM862
Ceiling mount
(indoor) |
DM866
Wall mount
(indoor) |
DM868
/ DM869 (Day/Night)
Wall mount
(outdoor) |
 |
 |
 |
|
TeleEye
DM860 Speed Dome Camera Specifications |
|
MODEL |
DM862
Ceiling mount (indoor) |
DM866
Wall mount
(indoor) |
DM868
Wall mount
(outdoor) |
DM869
Wall mount
(outdoor) |
|
CAMERA OPTICS |
|
Scanning System |
PAL (625 lines, 50 fields
per second)
NTSC (525 lines, 60 fields per second) |
|
Image Sensor |
1/4" interline transfer CCD |
|
Resolution |
520 TV lines |
|
Minimum Illumination |
0.06 Lux (F1.6) at 50 IRE, 32X sensitivity
boost |
Colour: 0.04 Lux (F1.6) at 50 IRE, 32X
sensitivity boost
B/W: 0.002 Lux (F1.6) at 50 IRE, 32X sensitivity boost |
|
Electronic Sensitivity Boost |
On (2X - 32X) / Off |
|
Video Output Level |
1.0Vp-p (75W ,
composite) |
|
Video S/N Ratio |
³48dB |
|
White Balance |
Auto / Manual |
|
Gain Control |
Auto |
|
Electronic Shutter |
1/50 - 1/10,000 sec |
|
Iris |
Auto / Joystick auto / Manual |
|
Back Light Compensation |
On / Off, 15 levels |
|
Lens |
Aperture stop: F/1.6 - 3.8 |
|
Focal length: f=3.6 - 79.2mm |
|
Viewing angle: 2.4º - 52º |
|
Zoom |
Optical: 22X / Electronic: 16X (Total: 352X) |
|
MECHANICAL DESIGN |
|
Privacy Masking |
On / Off, 4 masks |
|
Panning |
Range: 360º continuous |
|
Manual speed: 0.5º - 140º/sec |
|
Preset speed: 300º/sec |
|
Tilting |
Range: 0º - 90º |
|
Manual speed: 0.5º - 140º/sec |
|
Preset speed: 300º/sec |
|
Control |
80 Presets, 4 Pattern, 4 Patrols, 4 Tours, 4
Auto scans, Home position, Manual |
|
POWER / ENVIRONMENT |
|
Weather Proof Standard |
- |
IP44 |
IP66 |
|
Fan |
- |
- |
Continuous |
|
Heater |
- |
- |
Auto Start |
|
Operating Temperature |
0ºC - 40ºC |
-30ºC - 50ºC |
|
Humidity |
<90% |
|
Power Source |
AC 24V, 10W (max) |
AC 24V, 50W (max) |
|
Net Weight (kg) |
2.6 |
4.3 |
4.8 |
|
|
Specifications of DM-AL82 Alarm Interface |
|
ALARM INPUT |
|
No. of Channels |
8 |
|
RELAY SWITCH |
|
No. of Channels |
2 |
|
Max. Rating |
AC 125V, 0.4A / DC 20V, 2A |
|
COMMUNICATION |
|
Port |
RS485 to camera: 2400 / 4800 / 9600bps
RS485 to keyboard: 2400 / 4800 / 9600bps |
|
POWER / ENVIRONMENT |
|
Weather Proof Standard |
IP66 |
|
Operating Temperature |
0ºC - 40ºC |
|
Voltage |
DC 9V |
|
Max. Rating |
4.5W |
|
Dimension |
200mm x 143mm x 75mm |
|
Weight |
0.46 kg |
|
|
