Profesionalna DF880 dan/noc brza pokretna PTZ
kamera sa 36X optickim zumom
Osobine
- 1/4” kolor Sony CCD
- Snazan 432X zum ; Opticki : 36X, Digitalni : 12X
- Rezolucija : 480 (Dan) / 550 (Noc) TVL
- Osjetljivost : 0.01 Lux
- 7 alarmnih ulaza i 2 alarmna izlaza
- 24 zone privatnosti ( masking )
- IP66 nivo zastite
- Kompletno kompatibilna sa TeleEye video uredjajima za aplikacije
daljinskog video nadzora

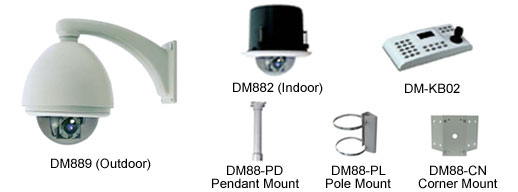

- Opcije montaze: Plafon, zidna, viseca, ugaona
- Kontrola PTZ tastaturom sa joystickom i /ili
TeleEye uredjajima

| MODEL |
DM882
(Indoor)
|
DM889
(Outdoor) |
| |
CAMERA OPTICS
|
| Scanning System |
PAL
(625 lines, 50 fields per second)
NTSC (525 lines, 60 fields per second) |
| Image Sensor |
1/4"
colour CCD |
| Resolution |
480
(Day) / 550 TVL (Night) |
| Minimum
Illumination |
Day:
0.1 Lux (F1.6) at 50 IRE
Night: 0.01 Lux (F1.6) at 50 IRE |
| Electronic
Sensitivity Boost |
On /
Off |
| Video Output Level |
1.0Vp-p
(75W , composite) |
| Video S/N Ratio |
³50dB
(AGC off) |
| White Balance |
Auto /
Manual |
| Gain Control |
Auto /
Manual |
| Electronic Shutter |
1/1 -
1/10,000 sec |
| Iris |
Auto /
Manual |
| Back Light
Compensation |
On /
Off |
| Lens |
Aperture
stop: F/1.6 - 4.5
Focal length: f = 3.4 - 122.4mm
Viewing angle: 1.7º - 57.8º |
| Zoom |
Optical:
36X / Digital: 12X (Total: 432X) |
| Privacy Zone
Masking |
On /
Off, 24 masks |
| |
MECHANICAL DESIGN
|
| Panning |
Range:
360º continuous
Manual speed: 0.1º - 160º/sec
Preset speed: 360º/sec |
| Tilting |
Range:
0º - 90º
Manual speed: 0.1º - 160º/sec
Preset speed: 360º/sec |
| Control |
220
Presets, 4 Patterns, 4 Tours |
| Protocol |
TeleEye
DM2, Pelco P, Pelco D |
| Built-in Alarm |
7
Inputs, 2 Outputs |
| |
POWER / ENVIRONMENT
|
| Weather Proof
Standard |
- |
IP66 |
| Fan |
- |
Continuous |
| Heater |
- |
Auto Start |
| Operating
Temperature |
-40ºC
- 60ºC |
| Humidity |
0% - 95% (No
condensation) |
- |
| Power Source |
AC 24V,
50W (max) |
| Net Weight (kg) |
5 |
5.32 |
|
