Kolor Pan/Tilt Plafon kamera za spoljnju
montazu DM338
Brosura
Osobine
- Sony kolor CCD senzor
- Rezolucija : 480 (Dan) / 520 (Noc) TVL
- Antivandal kuciste
- IP66 nivo zastite
- Vari-focal auto-iris lens
- 64 preset polozaja, 1 patrola
- 3X digitalni zum (continuirani) i auto pan funkcija
- Potpuno kompatibilna sa TeleEye uredjajima daljinskog videonadzora

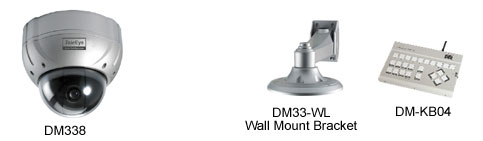

- Zidni nosac za montazu (opcija)
- Tastatura za upravljanje (opcija)
| MODEL |
DM338 |
| |
CAMERA OPTICS
|
| Image Sensor |
1/3" colour
CCD |
| Effective Pixels |
PAL: 752 (H) x 582
(V)
NTSC: 768 (H) x 494 (V) |
| Horizontal
Resolution |
480 (Day) / 520
(Night) TVL |
| Lens |
f = 4 - 9mm auto
iris lens, F1.2
(viewing angle (H) = approx. 70.8º - 31.4º) |
| Minimum
Illumination |
0.01 Lux (F1.2) |
| White Balance |
Auto |
| Electronic Shutter |
1/50 (1/60) sec |
| S/N Ratio |
>45dB (AFC off) |
| |
MECHANICAL DESIGN
|
| Panning |
Range: 0º - 355º,
Speed: 9º – 93º/sec |
| Tilting |
Range: 5º - 90º,
Speed: 9º – 93º/sec |
| Control |
64 Presets, 1
Patrol Sequence, 1 Pattern |
| Data Rate |
2400, 4800, 9600bps
(auto detection) |
| Data Interface |
RS-485 |
| Protocol |
TeleEye DM4, Pelco
D |
| |
POWER / ENVIRONMENT
|
| Operating
Temperature |
-10ºC - 50ºC |
| Power Source |
12V DC, 600mA (max) |
| Net Weight (kg) |
1.25 |
|
